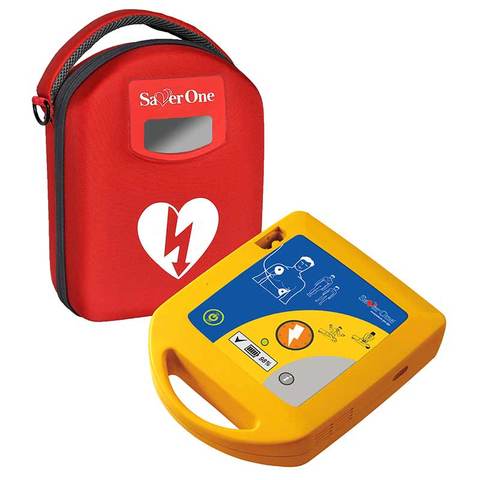

AED Saver 1 Pro

SKU: AEDS1P
R 48,179.99 inc. VAT

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Description:

  • AED Per Default, Reliable For Any BLS Rescuer, Can Be Easily
    Switched In a Manual Defibrillator Giving To ALS Responders The
    Best Decision-Making Control For a Manual Shock Timing or An
    Electric Cardioversion (Synchronised Shock).

Defibrillator:

  • Operation: AED Semi-Automatic (default) ECG Monitoring
    -Manual Asynchronous or Synchronous (used to convert atrial or ventricular tachyarrhythmias).
  • Energies: Standard max 200J or Power max 360J
  • Waveform: Adaptive BTE (biphasic truncated exponential)
    conforming to patient chest’s impedance.
  • Energy type: Escalating from 50 to 360J
  • AED Protocols: Adult Standard escalating 150, 200, 200J
    Adult Power escalating 200, 250, 360J
    Pediatric (Standard or Power) 50J fixed
    (AED adult shock protocols can be customized).
  • Manual Protocol:Selected by users from 50 to 360J. For electric cardioversion (in Synchronous mode) the shock is synchronised to occur with the R wave of the ECG.
  • Energy Display: Screen provides the energy to deliver both in
    Manual mode or AED mode.
  • Charging time:≤9 seconds with a new and fully charged battery
    depleted battery will result in a longer charging time.
  • Analysis time: IEC/EN 60601-2-4 from 4 to 15 seconds
  • Impedance: 20-200 ohms
  • Sensitivity: IEC/EN 60601-2-4 (AHADB, MITDB source), 97%
  • Specificity: IEC/EN 60601-2-4 (AHADB, MITDB source), 99%
  • Controls: 2 buttons: ON/OFF, shock button;
    3 buttons: to surf the menu;
    3 buttons: select energy, charge, disarm the device
  • Indicators: Status LED indicator informing on device condition
    Battery gauge with remaining capacity rate
    Audible alerts and text display with service alarms.
  • Upgradeable: through a USB cable or memory card.

ECG Monitoring:

  • Operations: Through defibrillation pads or standard ECG
    electrodes attached to a separate 2-Lead patient
    monitoring reusable cable SAV-C0017.
  • ECG size: Manual setting through the menu.
  • Heart Rate: 30-200 bpm.
  • Sweep Speed: 25 mm/sec.
  • Standard: IEC/EN 60601-2-27 less then the points 202.6.2.101;
    201.12.1.101.12,13; 208.6.6.2.101 not performed for the
    intended use of the device,as it is not intended for
    environments such as operating theatres
    or intensive care units.
  • Display: 5,7” TFT colour, 640 x 480 pixel.

Battery options:

  • Type: Li-SOCl2 Disposable, code SAV-C0903
  • Autonomy: 250 complete rescue cycles (shocks at 200J and CPR) or
    160 complete rescue cycles (shocks at 360J and CPR) or
    24 hours ECG Monitoring for a new and fully charged
    battery (*).
  • Shelf-Life: when stored in original packaging 5 years (*).
  • Battery-Life: 4 years once installed to AED, assuming one battery insertion
    test and daily self-test but without switching AED on (*).
  • Type: Li-ion Accumulator, code SAV-C0011.
  • Recharging time: 2,5 hours with the charger station code SAV-C0014 (*)
    (recommended to charge every 4 months at least).
  • Autonomy: 200 shocks at 200J or 110 shocks at 360J or 14 hours in
    ECG Monitoring for a new fully charged accumulator (*).
  • Battery-Life: 2 years or 300 charging cycles (*).

Pads options:

  • Type: Disposable, pre-gelled and self-adhesive
  • Adult: Code SAV-C0846, for patient >8 years or >25 kg.
  • Pediatric: Code SAV-C0016, for patient <8 years or <25 kg.
  • Cable length: 120 cm.
  • Shelf-Life: 30 months.

Event recording:

  • Internal memory: up to 6 continuous hours of ECG and rescue events.
  • Optional memory: Removable SD card; length of storage depends on card
    capacity: a 2GB card records up to 100 hours.
  • Data recording: “AED1LOG“ text file with detailed self-test activity
    “AEDFILES“ with complete recorded information.
  • Event review: “Saver View Express“ data manager software.

Physical:

  • Size: 26,5 x 21,5 x 7,5 cm.
  • Weight: 2,08 kg with disposable battery and pads
    2,13 kg with rechargeable battery and pads.

Environmental:

  • Operating temperature: 0°C to 55°C (32°F TO 131°F)
  • Storing/Shipping temperature: -40°C to 70°C (-40°F TO 158°F) without battery.
  • Humidity: 10% to 95% relative humidity non condensing.
  • Sealing (IP Protection): IEC/EN 60529 class IP54;splash proof, dust protected.
  • Shock/Drop Abuse Endurance: IEC/EN 60601-1 clause 21; 1 meter drop, impact,
    force, rough handling, mobile tolerance.
  • Electrostatic Discharge: IEC/EN 61000-4-2
  • Electromagnetic Compatibility: IEC/EN 60601-1-2 Emission, Immunity
  • Electrical Protection: IEC/EN 60601-1; Internally Powered Type BF/CF
    Directive93/42/CEE and 2007/47/CE: Class IIb
