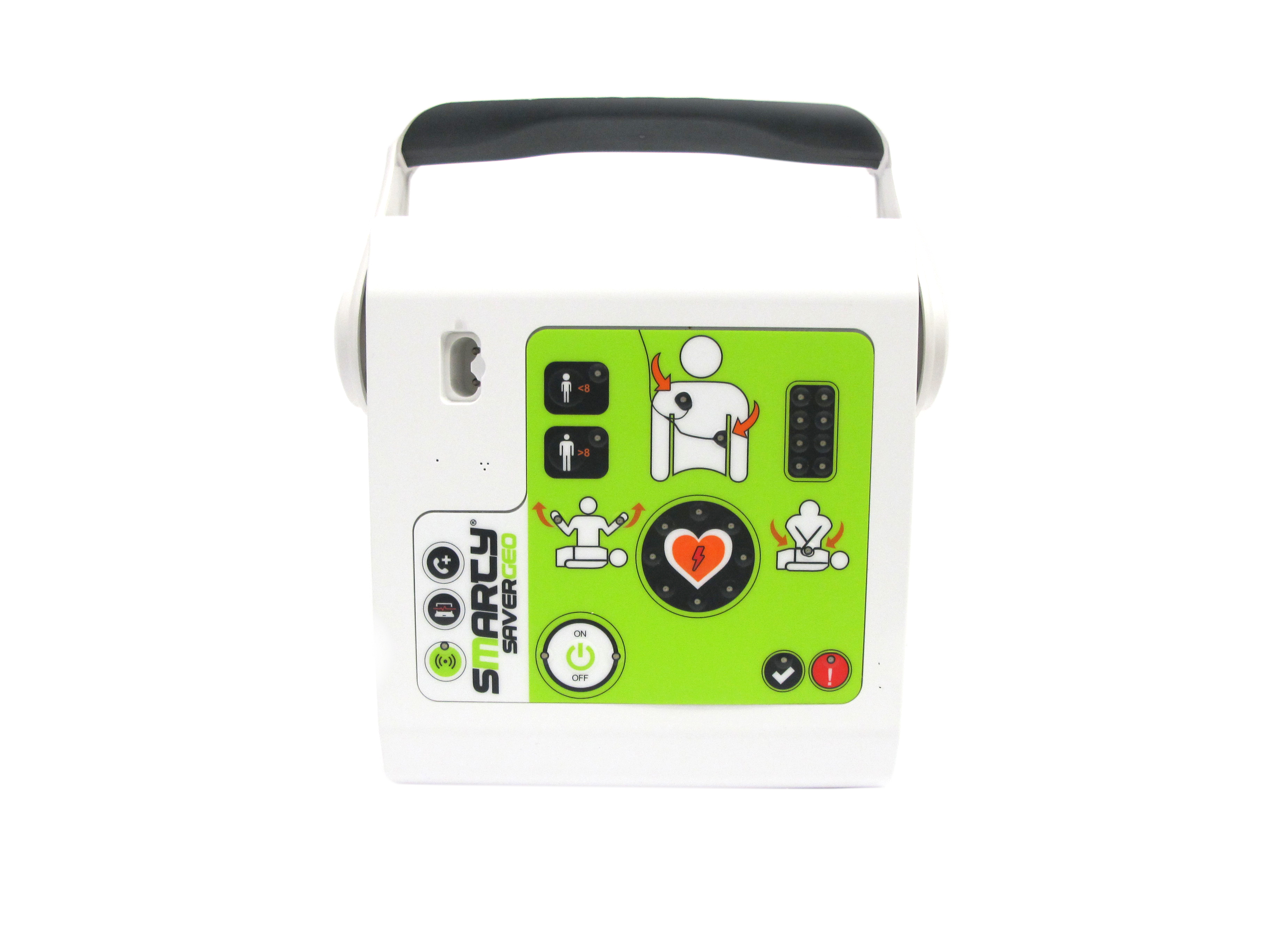

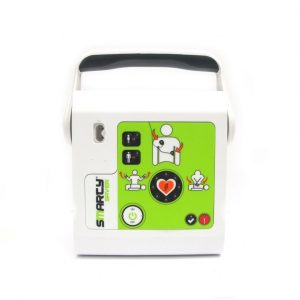

AED Saver Smarty

Description:

• The Smarty Saver Is Very
  Affordable And Easy To Use.

• Reliable and Durable, It Can
  Be Easily Operated By
  Anyone

DEFIBRILLATOR

• Model: Code SM1-B1001: Semi-Automatic
• Code SM2-B1002: Fully Automatic
• Maximal energy: 200J (nominal)
• Waveform: Biphasic truncated exponential (BTE)
  automatically adapts according to
  patient's impedance.
• Discharge protocol: Adult: incremental
  first shock 150J - subsequent 200J
  Paediatric: fixed 50J.
• Charging time from
  shock alert*: IEC60601-2-4
  ≤ 9 sec with shock at 150J
  ≤ 12 sec with shock at 200J
• Analysis time: IEC/EN 60601-2-4
  from 4 to 15 seconds
• Impedance range: 20-200 Ohms
• Sensitivity: 97% (IEC/EN 60601-2-4)
• Specificity: 99% (IEC/EN 60601-2-4)
• Controls:
  Semi-automatic model 4 buttons: ON/OFF, shock delivery,
  patient selection (adult/child)
• Fully Automatic model 3 buttons: ON/OFF, patient selection
  (adult/child)
• Light indicators: - Device status: 2 LEDs red /green
  - PADs placement: 2 red LEDs
  - Do not touch the patient: 2 red LEDs
  - Touch the patient: 1 green LED
  - Adult patient: 1 green LED
  - Paediatric patient: 1 green LED
  - ON/OFF button: 2 green LEDs
  - Shock button: 8 red LEDs
• Upgradeable: Through USB cable
  External memory card

PHYSICAL:

• Size: 200x213x71mm (folded handle)
  257x213x71mm (open handle
• Weight: 1,56 Kg (with battery and PADs)

EVENT RECORDING:

• Optional external
  memory: Micro uSD/SDHC card up to 32GB
• Stored data: “AED1LOG.txt”: text file with
  detailed report of the activities of
  self-test and power-ups
  “AEDFILE.aed”: ECG trace, rescue
  events, voices and background audio
• “AEDFILE.aed”review: Through data manager software
  “Saver View Express“

Defibrillation Pads:

• Type: Code SMT-C2001: Disposable , Universal, Pre-Gelled, Preconnected Code SMT-C2002: Disposable, Univeral , Pre-Gelled, Preconnected , Face-to-Face

Dimensions:

• Total surface 136cm²; Active Surface 94cm²; 120cm Cable Length (External To The Packaging)

Shelf Life:

• 24-30 Months As Indicated On The Packaging .

Battery:

• Type:  Code SMT-C14031: Disposable Battery 8 Cells Li-MnO2
• Voltage Capacity:  12VDC-3000mAh

• Atonomy: Up To 200 Complete Rescue Cycles (200J Shocks + CPR); Up To 36 Hours Of Continuous ECG Analysis*

• Stand By Life:  Up To 3 Years With a Battery Insertion Test and Daily Self-Test without Any Turning On The AED*
• *Performance Refferred To New Batteries Stored At a Temrepture Of 20° C And Relative Humidity 45% Without Condensation.

Environmental Specifications:

• Operating Tempreture:   0°C to 45°C (32°F to 113°F)
• Storing/Shipping Tempreture: -40°C to 70°C (-40°F to 158°F)

• Humidity: 10% to 95% Relative Humidity non condensing.
• Sealing(IP Protection): IEC/EN 60529: Class IP56
• Shock/Drop Abuse Endurance: IEC/EN 60601-1 Clause 21
• Electrostatic Discharges: IEC/EN 6100-4-2
• Electromagnetic Compatibility: IEC/EN 60601-1-2:2015
• Protection From Defibrillation: IEC/EN 60601-1; Device Internally Powered , Type BF Directive 93/42/CEE
• Classification: Directive 93/42/CEE Amd 2007/47/CE: Class IIB, Annex IX Rule 9

Lead time:

Our lead times are 5-7 working days excluding weekends, public holiday’s & shipping time with our courier.

Lead times on out of stock or special-order items 6-8 weeks / 8-10 weeks

PLEASE NOTE DUE TO UNFORSEEN ROAD OR AIR FREIGHT DELAYS PARCELS CAN BE DELAYED BY A FEW DAYS.

*Please note pictures are mainly for illustration purposes, actual product and size may vary slightly*
